Welding Machine Cable
>
|
|
| Place of Origin | Zhejiang haiyan |
| Brand Name | HT |
| Certification | CE/CCC |
| Model Number | YH/YHF |

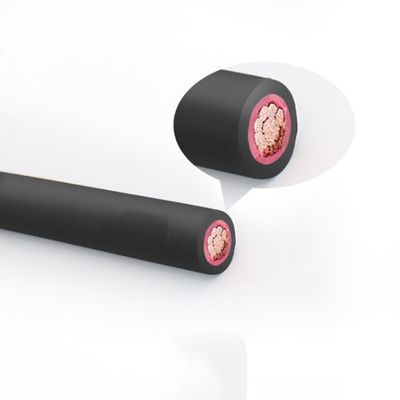

YH Pure Copper Welding Handle Wire Welding Wire Antifreeze Wear-Resistant Electric Welding Machine Special Rubber Cable
Factory direct sales of high-quality oxygen free copper rubber insulated electric welding cable
Application:
Welding cables are used for connecting the electrodes to the welding equipment,charger machine.
These cables are suitable for welding equipment,charger machine in industry , in automated welding equipment,
in tooling constructions, automobile and ship building as well as for handheld electrodes in workshops and at
building sites.These flexible and robust currentcarrying cables are suitable for use at high mechanicalloads in
dry indoors.
Product Description
Leading wire for welding machine and also applied to power or electrical household appliances and a variety of mobile or electrical devices and tools with AC rated voltages of Uo / U 450/750V and below.
This welding cable is used to power the secondary circuit of electric welding generators,the circuit that controls the electrode that emits the charge used to weld.While welding cable is not meant to be part of any other system,It has a history of being used for public lighting arrangements.
| Nom. Area mm2 |
Max. Dia. of wire mm |
Nom. Cover Thickness mm |
Average O.D. mm | Maximum DC Resistance at 20℃ Ω/km |
||
| Min. | Max. | Tinned copper | Un tinned copper | |||
| 10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 | |
| 25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 | |
| 35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 | |
| 50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
| 70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
| 95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 | |
| 120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
| 150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 | |
| 185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 | |
|
|
