Rubber Sheathed Flexible Cable
>
|
| Place of Origin | Zhejiang haiyan |
| Brand Name | HT |
| Certification | CE/CCC |
| Model Number | YC/YCW |

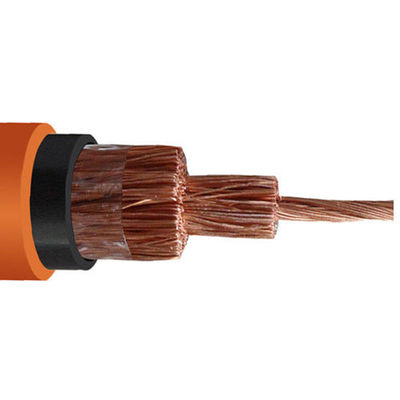

YZ / YC / JHS rubber sheathed cable waterproof 2-core 3-core 4-core 1.5/2.5/4/6/10 square rubber cord
Use characteristics:
● Power frequency rated voltage U0/U is 380/660V, 660/1140V, 1.9/3.3kv, 3.6/6kv, 6/10KV, 8.7/10KV, 300/500V.
● Maximum allowable working temperature of cable conductor: 65℃ 90℃
● The minimum allowable working environment temperature of the cable is -35℃
● Cable bending radius: not more than 6 times the outer diameter of the cable.
Scope of application:
Mine rubber-sheathed flexible cables are suitable for mobile laying cables for mining power plants with power frequency rated voltage U0/U 8.7/10KV and below.
Product Standards:
This product is produced according to GB/T12972-2008 "Rubber sheathed flexible cables for mines", MT818-2009 "Flame retardant cables for coal mines", and can also be in accordance with the International Electrotechnical Commission recommended standards IEC, British standards, German standards and the United States according to user needs Standard production.
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YZ | YZW | ||
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
