Rubber Sheathed Flexible Cable
>
|
| Place of Origin | Zhejiang haiyan |
| Brand Name | HT |
| Certification | CE/CCC |
| Model Number | YC/YCW |

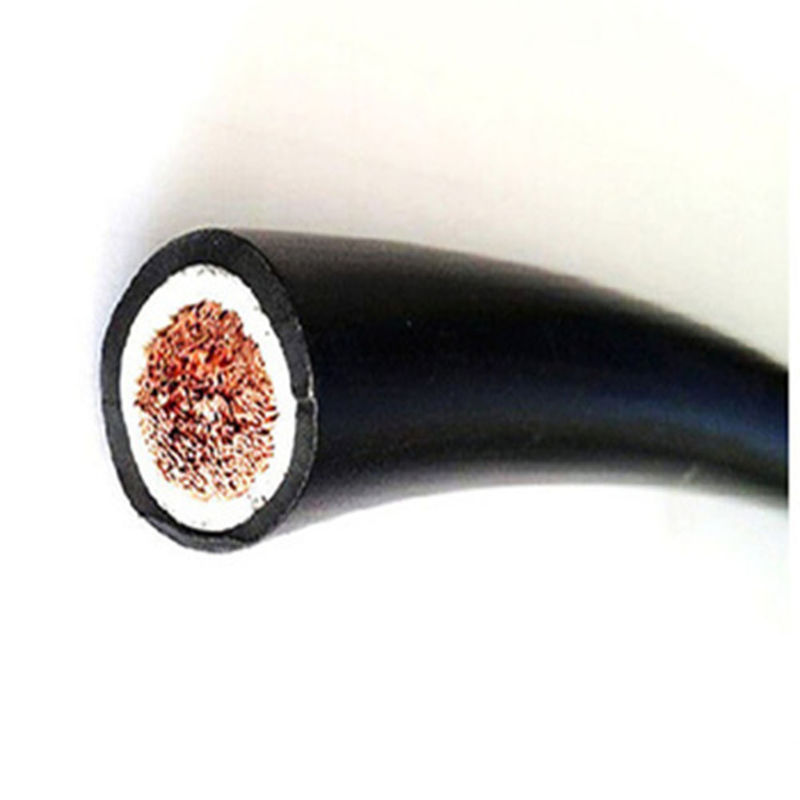

Rubber sheathed flexible cable YC waterproof wear-resistant waterproof power cord rubber wire and cable
Application:
Mine cables are the abbreviation of cables for coal mines. All cables used in mines are flame-retardant cables, and they should be issued with a certificate of safety mark for mining products by the National Mining Product Safety Marking Center. Mining cables are used for power connection of shearers and similar equipment with a rated voltage of 1.9/3.3kV and below.
Use characteristics:
● Maximum allowable working temperature of cable conductor: 65℃ 90℃
● The minimum allowable working environment temperature of the cable is -35℃
● Cable bending radius: not more than 6 times the outer diameter of the cable.
Flame-retardant mechanism of mining cables:
Flame retardants are added to the insulation and sheath materials of mining cables. Under the heat of the combustion reaction, the flame retardants in the condensed phase decompose and absorb heat, which slows down the temperature rise in the condensed phase and delays the thermal decomposition rate of the material; After the flame retardant is thermally decomposed, the chain reaction free radical cable is released, which interrupts the branches of the flame and the chain reaction, and slows down the gas phase reaction speed; catalyzes the thermal decomposition of the solid phase product in the condensed phase, and the formation of the coking layer or the foam layer strengthens these layers The role of a hard shell that hinders heat transfer; under the action of heat, the flame retardant undergoes an endothermic phase change, which physically prevents the temperature rise in the condensed phase.
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YZ | YZW | ||
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
|
|
